Diamond vs Steel Files: Uses and Grit Guide

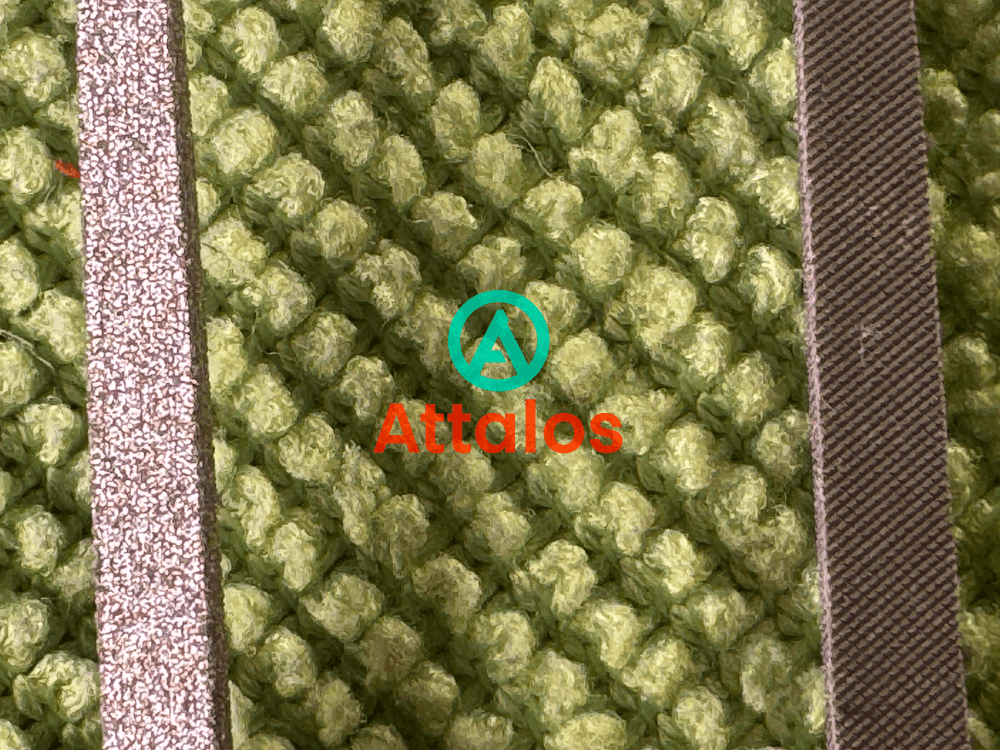

Diamond files and traditional steel files may look similar on a bench, but they remove material in completely different ways. Steel files cut with hardened teeth. Diamond files abrade with bonded diamond grit. That difference changes what materials they work on, how you choose coarseness, how they should be used, and what kind of finish you can expect.

Quick answer

Choose a steel file for fast shaping, deburring, and general work on machinable materials such as mild steel, brass, bronze, and many softer metals. Choose a diamond file when the workpiece is hardened, brittle, highly wear-resistant, or too difficult for conventional file teeth, such as hardened steel, tungsten carbide, ferrite, technical ceramics, and glass. In many workshops, the best answer is to keep both.

Two types of files, two coarseness systems

Traditional steel files use cut teeth rather than abrasive grit. That is why steel-file terminology is split into two separate decisions.

The first decision is tooth pattern:

• Single-cut files use one row of diagonal teeth and are favored for more controlled finishing, draw filing, and smoother cutting.
• Double-cut files use two crossing rows of teeth and remove material faster.
• Rasp-cut files use individual raised teeth and are intended for softer materials such as wood, lead, some plastics, and similar work.
• Curved-cut or milled-cut files are commonly used in bodywork and surface shaping.

The second decision is coarseness:

• American-pattern files are commonly sold as bastard-cut, second-cut, and smooth-cut.
• Swiss-pattern files are smaller and finer, and are graded numerically, typically from 00 through 6, with higher numbers indicating finer cuts.

File size matters too. Industrial hand-file guidance notes that larger hand files are coarser and remove more material, while smaller files are finer and smoother. That is one reason a "bastard" file cannot be treated as a universal roughness number independent of file length and pattern.

Diamond files follow a different system. FEPA publishes a standard for superabrasive grain sizes, and FEPA-aligned manufacturer data shows grades such as D181, D126, D91, D64, and D46 as diamond grain-size classes tied to mesh ranges. These are not steel-file cut names and should not be translated into direct steel-file equivalents.

Diamond files vs steel files at a glance

Feature	Diamond file	Steel file
Working surface	Bonded diamond abrasive	Hardened cut teeth
Primary action	Abrasion	Chip-cutting
Best on	Hardened, brittle, wear-resistant materials	Machinable metals and general workshop stock removal
Typical pressure	Light, controlled pressure	Moderate forward-stroke pressure
Coarseness system	D-value grain class	Tooth pattern + coarseness + size
Strengths	Hardened steel, carbide, glass, ferrite, ceramics, edge work	Mild steel, brass, bronze, deburring, shaping, smoothing
Main limitations	Costs more; may load on soft ductile metals	Can skate or dull on very hard materials

This comparison is consistent with industrial hand-file guidance and diamond-file manufacturer recommendations.

Why D-values are not steel-file equivalents

This is the single most important correction to make.

A diamond file's D-value describes the diamond abrasive grade. FEPA and FEPA-aligned manufacturer tables treat D-values as superabrasive grain classes linked to mesh ranges such as 80/100, 120/140, or 170/200. A steel file's "bastard," "second," or "smooth" label describes a toothed cutting tool whose practical behavior also changes with file length, shape, and tooth pattern. These are not the same measurement system.

That means it is not accurate to treat a D126 diamond file as the same thing as a second-cut steel file, or a D46 diamond file as the same thing as a smooth-cut steel file. A safer comparison is practical rather than literal: D181 is a common coarse diamond hand-file grade, D126 is a common medium grade, and D91 is a common fine grade across manufacturer product ranges.

Diamond grit guide

The table below uses FEPA-aligned mesh pairings and practical hand-file naming used across manufacturer catalogs.

Diamond grade	Mesh range	Practical label	Best use
D181	80/100	Coarse	Rougher shaping on hard materials, faster removal when finish is secondary
D126	120/140	Medium	Best general-purpose starting point for most diamond hand-file work
D91	170/200	Fine	Fitting, deburring, refining edges and small details
D64	230/270	Very fine	Fine finishing where a lighter scratch pattern matters
D46	325/400	Extra fine	Very light finish work, touch-up, and refinement rather than stock removal

For most workshop use, the buying decision is straightforward:

• Buy D126 first if you want one versatile diamond grit.
• Add D91 if you do more fitting, jewelry-scale detail, or cleaner finishing.
• Buy D181 only if you regularly need more removal speed on hard materials.

Steel-file cuts explained clearly

A better steel-file section should separate the concepts that are often blended together.

Tooth pattern

Single-cut files are better for smoother control and finishing. Double-cut files are better for faster stock removal. Rasp-cut files are for soft materials. Curved-cut files are used where bodywork-style shaping or special chip clearance matters.

Coarseness

American-pattern files are generally available in three common grades:

• Bastard-cut for rougher, faster removal
• Second-cut for general work
• Smooth-cut for finer finishing

Swiss-pattern files are finer and more precise, which is why they make sense for modelmaking, detailed metalwork, small tool parts, and jewelry-scale fitting.

Which file should you use for each material

The table below synthesizes manufacturer-listed diamond-file workpiece materials with common industrial guidance on steel-file types and shapes.

Material or task	Recommended first choice	Shape / grit or cut suggestion	Why
Mild steel	Steel file	Flat or hand file, double-cut bastard or second	Faster stock removal and deburring
Brass and bronze	Steel file	Single-cut or second/smooth finishing file	Easier cutting and cleaner finishing on machinable nonferrous metals
Aluminum	Steel file	Curved-cut or sharp coarse steel file	Less loading trouble than diamond in many cases
Hardened steel	Diamond file	Flat, hand, or half-round in D126 or D91	Conventional files may skate; diamond is designed for hard materials
Tool steel above about 54 HRC	Diamond file	D126 general, D91 for finer work	Common manufacturer guidance lists this as suitable diamond-file material
Tungsten carbide	Diamond file	D126 or coarser if removal matters	Practical hand-file choice on carbide
Glass	Diamond file	Fine to medium, light pressure	Abrasive action works where teeth do not
Technical ceramics	Diamond file	D126 or D91 depending finish needs	Conventional files are ineffective
Ferrite	Diamond file	Fine to medium	Common manufacturer-listed workpiece category
Nickel- or titanium-based superalloys	Diamond file for detail work	D126 with light pressure	Manufacturer material charts list these among compatible workpiece materials
Soft precision metal parts	Swiss-pattern steel file	Needle or precision shapes	Better control on small non-hardened parts
Wood, leather, soft plastics	Rasp or appropriate steel file	Rasp-cut or coarse steel	Diamond is rarely the efficient first choice

File shapes and where each shape works best

Shape selection is one of the biggest missed opportunities in file buying. A useful file choice is not only about grit or cut; it is also about whether the work calls for a flat file, half-round file, round file, knife file, square file, or three-square file. Manufacturer and distributor guides all reinforce that shape-based choice.

Shape	Best for	Notes
Flat file	Flat faces, edges, deburring, general shaping	Usually the first steel file to buy
Hand file	Flat surfaces near shoulders	Often includes a safe edge to protect adjacent surfaces
Half-round	Concave surfaces plus flat work	Highly versatile for general workshop use
Round	Enlarging holes, radii, curved grooves	Useful where rectangular files cannot reach
Square	Rectangular holes, keyways, corners	Good for straight-sided internal geometry
Three-square / triangular	Internal angles, V-grooves, saw teeth	Best for acute corners and notches
Knife file	Very narrow grooves and acute angles	Good for tool-and-die, model, and detail work
Barrette or riffler	Precision contours and hard-to-reach forms	Better for jewelry, mold, and sculpted detail work

How to use a file correctly

Steel files and diamond files reward different technique.

For steel files, industrial hand-file guidance recommends using a secure handle, clamping the work properly, applying pressure on the forward stroke, and lifting or greatly reducing pressure on the return stroke. Using the full working length helps avoid uneven wear and unwanted grooves.

For diamond files, manufacturer guidance recommends light pressure, especially on workpiece edges. That is important because forcing a diamond file does not turn it into a faster tool; it mostly increases wear, reduces control, and risks damaging the abrasive layer.

Soft, ductile, gummy, or composite materials also need extra care. Aluminum, copper, lead, some plastics, PCB laminate, and FR-4 can load tooth spaces or abrasive surfaces. Clean the file often, avoid forcing the cut, and treat large PCB or FR-4 size changes as sawing, routing, or sanding jobs rather than casual hand-filing work.

Safety before filing

Clamp the work securely, wear eye protection, and fit a tight handle to any steel file with an exposed tang. Do not clear sharp filings with bare hands. The dust risk depends on the workpiece, coating, and contamination, so check the material safety information and use suitable extraction or respiratory protection instead of assuming hand filing is dust-free. Never use a file as a pry bar, punch, or striking tool.

The Nicholson Guide to Files and Filing provides the underlying guidance on handles, pressure, cut types, shapes, and file care.

Common filing mistakes

A stronger practical guide should call out the mistakes that happen at the bench:

• Using a steel file on a hardened surface and mistaking "skating" for poor technique
• Pressing too hard on a diamond file
• Confusing tooth pattern with coarseness
• Using the wrong shape and then blaming the grit
• Letting files load or pin instead of cleaning them
• Throwing loose files into a drawer and damaging the working surfaces

Cleaning, storage, and care

Industrial hand-file guidance recommends keeping steel files clear of water and grease, brushing the teeth clean with a file card or wire file brush, and storing files separately to protect the teeth. It also warns against using a metal file without a tight-fitting handle.

Diamond-file manufacturer guidance recommends cleaning loaded diamond files with a file brush and appropriate cleaners such as kerosene or anti-static plastic cleaner, avoiding grease, and using light pressure in the first place to reduce loading and premature wear.

Buying guide and starter recommendations

A practical steel starter set is:

• one flat or hand file
• one half-round file
• one round or three-square file
• one finer finishing file
• one file card
• proper handles

A useful first diamond-file setup is:

• D126 flat or hand file
• D126 half-round file
• D126 round or square file
• one D91 finishing file if detail fitting matters

For hobbyists, jewelers, and modelmakers working on non-hardened small parts, Swiss-pattern steel files still make sense. For hardened detail work, small diamond needle or riffler shapes are often the better fit.

Which file should you choose

Choose steel when the material cuts easily, the job needs faster stock removal, or you are doing general shaping and deburring on mild steel and nonferrous metals. Choose diamond when the workpiece is hardened, brittle, wear-resistant, or too difficult for conventional file teeth. Choose both when you rough a part with steel and then refine a hardened edge or high-wear area with diamond.

Source notes

This guide avoids one-to-one conversions between diamond grit and steel-file cuts. PFERD's D126 diamond hand-file specification lists hardened steel, tungsten carbide, ferrite, glass, technical ceramics, and nickel- or titanium-based superalloys among suitable materials. The Nicholson Guide to Files and Filing separates tooth pattern, coarseness, file shape, handle use, and care. FEPA's standards overview confirms that superabrasive grit designations use D for diamond and B for cBN; the detailed grain-size ranges are controlled by the relevant FEPA standard.

FAQ

What does D126 mean on a diamond file?

D126 is a diamond grain-size class in the FEPA superabrasive system. In practical hand-file buying terms, it is commonly sold as a medium grit.

Is D91 finer than D126?

Yes. D91 is a finer grit class than D126 and is better suited to fitting and refinement.

Are diamond files better than steel files?

Only on the right materials. Diamond files are better on hardened steel, carbide, glass, ferrite, and ceramics. Steel files are still better for faster work on machinable metals.

Can I use a diamond file on aluminum?

You can, but it is often not the best first choice because soft ductile metals can load the surface. A suitable steel file is usually more efficient.

Why does my steel file slide across the work?

The workpiece may be too hard, the file may be worn, or the teeth may be loaded. If the material is hardened, a diamond file is usually the correct next step.

What file shapes should I buy first?

For most users, start with flat, half-round, and round. Add square, three-square, knife, or riffler shapes based on the geometry you actually work on.

If you need help selecting a repeatable hand-finishing process for a material or part geometry, send Attalos the material, hardness, shape, and target finish.
